Linear Actuators

The Sier linear actuators are devices make up of an electric motor, a speed reductor and a screw, which provides a safe and economical form o linear control. It is vastly implemented in the industry and in other technological areas.


THE ADVANTAGES:

It replaces some manual fuses and pneumatic and hydraulic cylinders, which gives some advantages and at low cost.

APPLICATIONS: - Naval Industry - Robotization; - Paper and Cellulose Industry; - Elevators; Petrochemical poles; - Medical, laboratory and Hospital Equipment; - industrial Automation; - Door and Gate locks, etc… For more information contact us.

In operating machines;
- Factory Modernizing – automation equipment;
- Agricultural machine – also including many other agricultural operations;
- Fabric Machines – applying to many fabric operation;
- In the control of flow control valve – easily adaptable to common valves, permitting a proportionally controlled flow.





TECHNICAL CHARACTERISTICS:

ATUADOR LINEAR

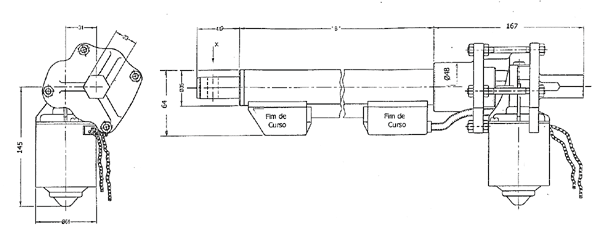

MODLES	STEPS	flow direction	TENSION	AMP.	kgf CAPACITY	LINEAR SPEED mm/s	"B"
AL 56	P 2	56 mm	24 vcc	3,0 A	600	1,8	143 mm
	P 4				450	3,0
	P 7				250	5,0
AL 100	P 2	100 mm	24 vcc	3,0 A	600	1,8	187 mm
	P 4				450	3,0
	P 7				250	5,0
AL 150	P 2	150 mm	24 vcc	3,0 A	600	1,8	237 mm
	P 4				450	3,0
	P 7				250	5,0
AL 200	P 2	200 mm	24 vcc	3,0 A	600	1,8	287 mm
	P 4				450	3,0
	P 7				250	5,0
AL 250	P 2	250 mm	24 vcc	3,0 A	600	1,8	337 mm
	P 4				450	3,0
	P 7				250	5,0
AL 300	P 2	300 mm	24 vcc	3,0 A	600	1,8	387 mm
	P 4				450	3,0
	P 7				250	5,0
NOTE: We can make arrangements to supply at 12vcc

---
